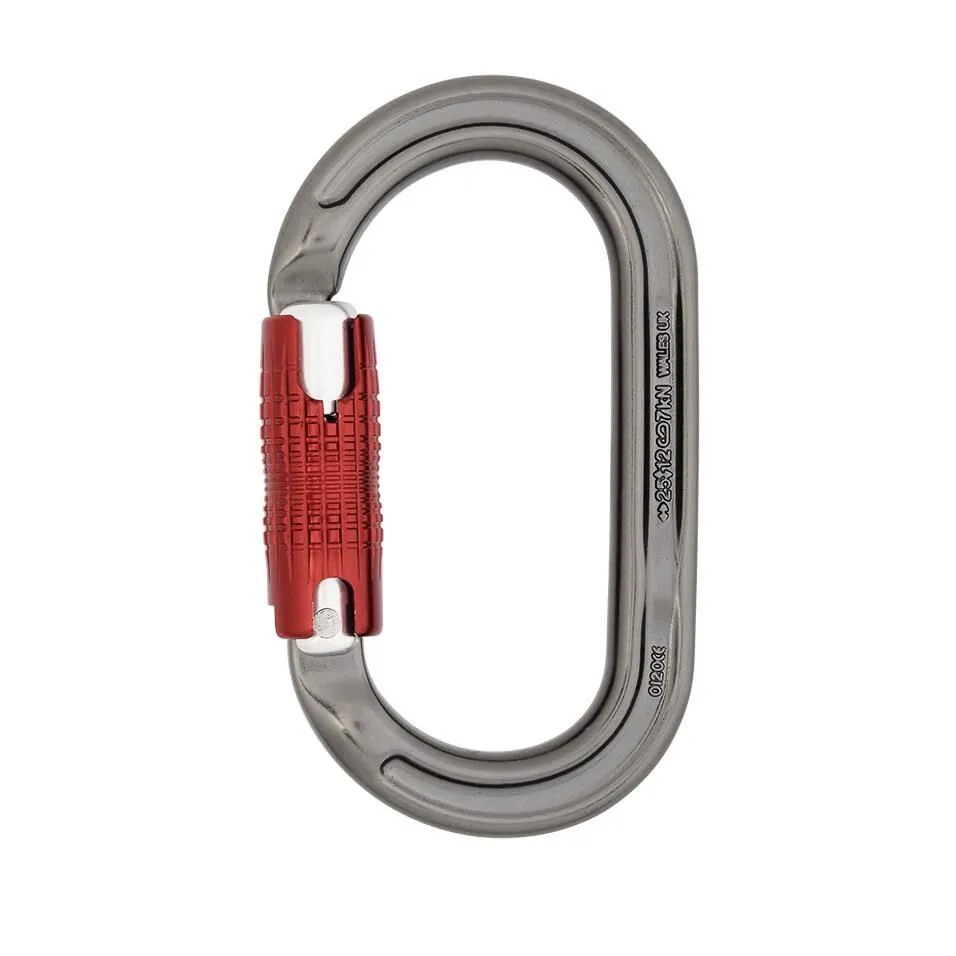

Product Name: Ultra O Kwiklock
Product Code: A323
Color: Titanium/Red
Dimensions: 63 x 109mm
Weight: 74g
MBS (Major Axis): 25kN
MBS (Minor Axis): 12kN
MBS (Gate Open): 7kN
Gate Opening (X): 19mm
Keylock nose eliminates snagging
This carabiner’s nose slots into a groove in the gate, allowing it to achieve full strength without a gate notch. This creates a clean internal profile that won’t catch on gear, bolts, or slings, giving easier clipping and removal from systems.
Oval carabiner for rigging stability and central positioning of attachments
Oval carabiners have curved rope baskets for compatibility with slings, ropes, pulleys, and devices. The baskets allow attachments to self-center when loaded, giving greater stability in systems that D-shaped carabiners. Their symmetry allows them to work both ways in rigging systems.
I-Beam construction for optimum strength-to-weight ratio
I-Beam construction techniques allow carabiners to be lighter without compromising strength. This is achieved through hot forging, a process that allows metal to be made into complex shapes that improve functionality.
Available with a captive bar to secure orientation and prevent tampering
Captive bars ensure carabiners load along their strongest axis by securing their orientation, and can also be used to create tamper-proof systems that cannot be dismantled by users.
