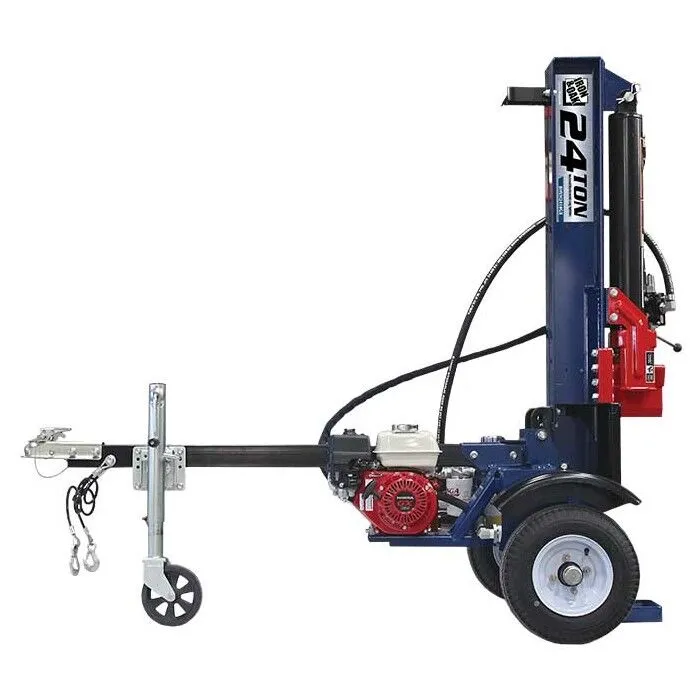

Iron & Oak 24 Ton Vertical/Horizontal Log Splitter

$3,699.00

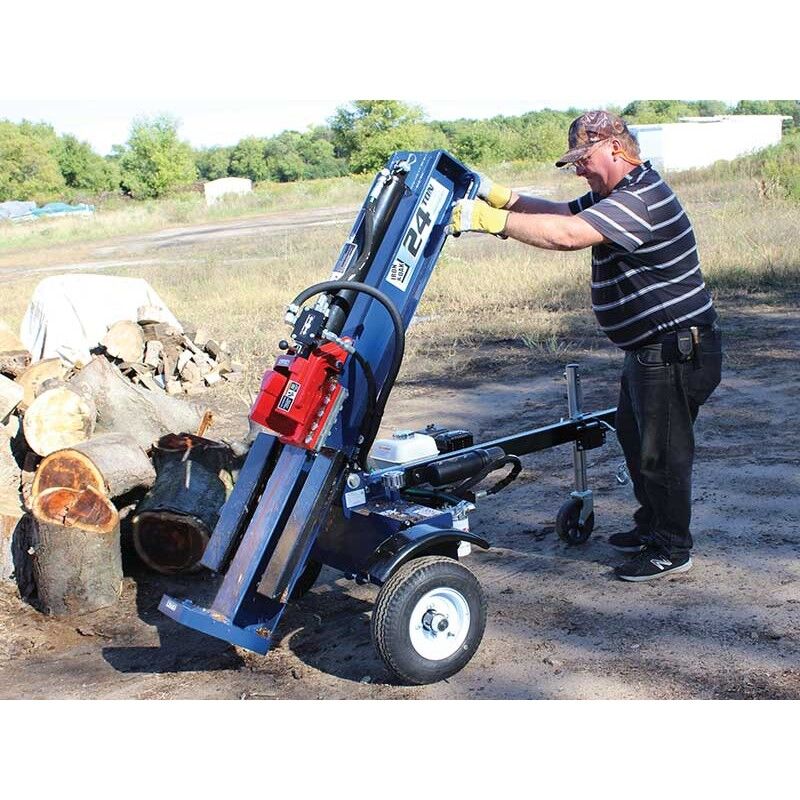

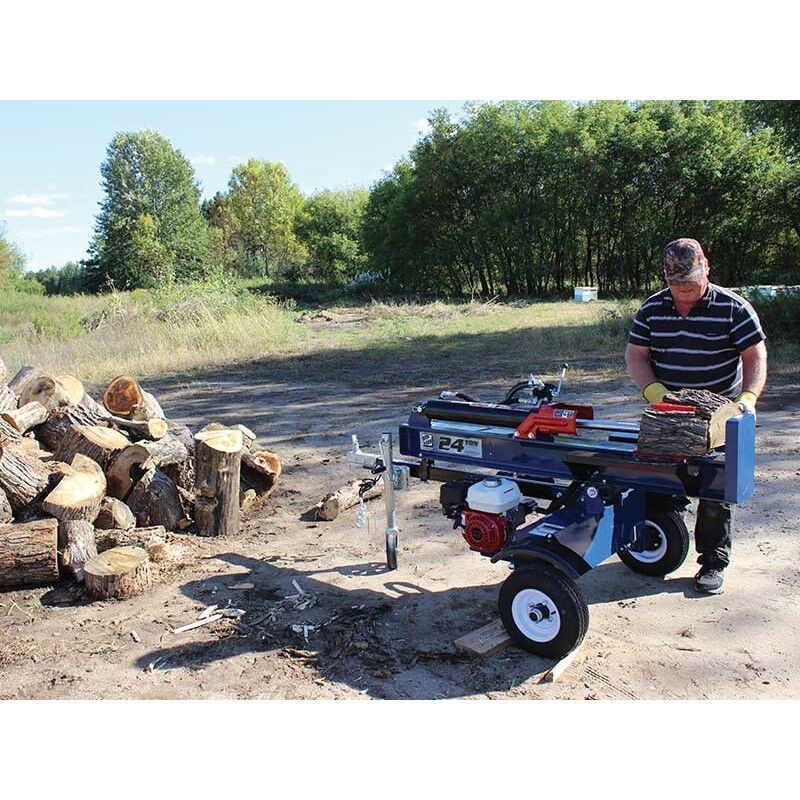

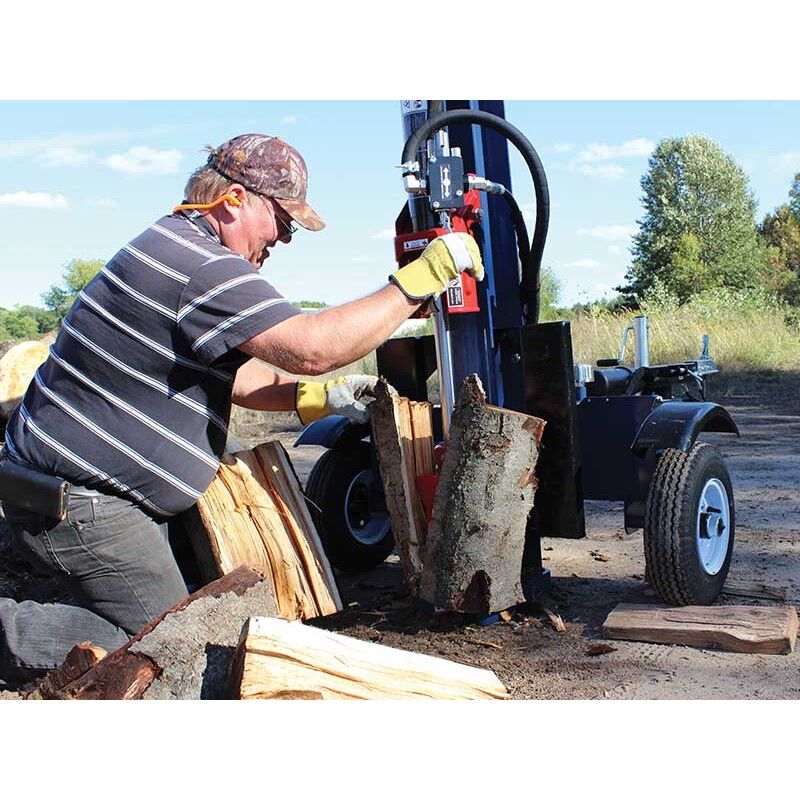

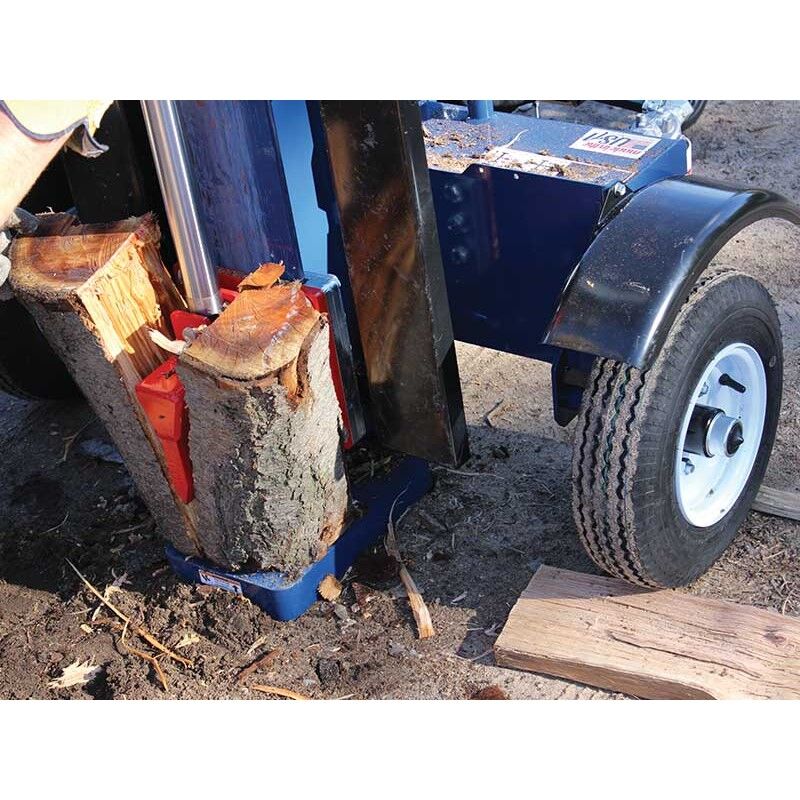

This Iron & Oak BHVH2418GX commercial grade log splitter is customizable just the way you like it. Please see the options below and build your wood splitter just how you want it. This log splitter will split firewood in both vertical and horizontal positions.

This item does not qualify for free shipping. For heavy or oversized packages, we will make every effort to find the best carrier at the best price. Please contact us directly for a shipping quote: (800) 942-7267.

Categories: SKU: 5422

This BHVH2418GX Iron & Oak log splitter is built with top-quality parts such as Brand valves and Concentric pumps. This model is powered by a commercial Honda GX160 engine. These motors are commercial rated and provide maximum efficiency, performance, and power with minimal noise and emissions. Honda engines have a 3-year commercial grade warranty.

Included with this log splitter: dislodger, fenders, heavy-duty log cradles, and tow cables.

This log splitter is fully customizable with the following options:

  • Log Dislodger – A log dislodger ejects stringy logs that stick on the wedge when it retracts. The log will hit the dislodger and self dislodge so you don’t have to pull or hammer off the wood.
  • Engine Guard – Bolts to the beam and protects engine from falling wood.
  • Drainzit Oil Hose Kit – Drainzit oil hoses make changing oil easier and cleaner!  Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.
  • Log Splitter Cover – High-quality log splitter cover with drawstrings to protect your investment from the elements.

Features:

  • Auto latch system for safe towing
  • Service-friendly design for checking hydraulic fluid

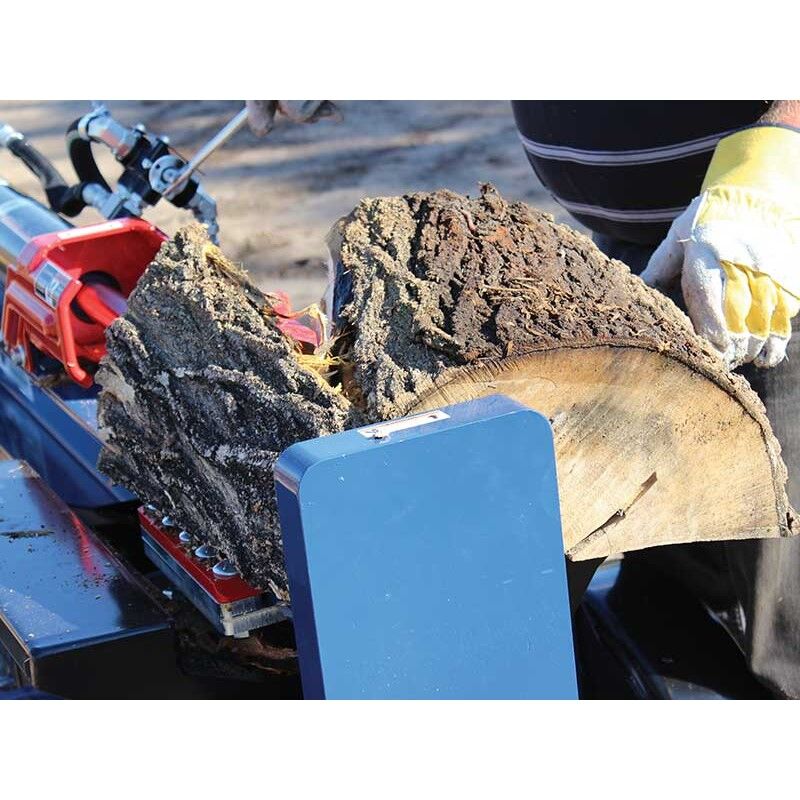

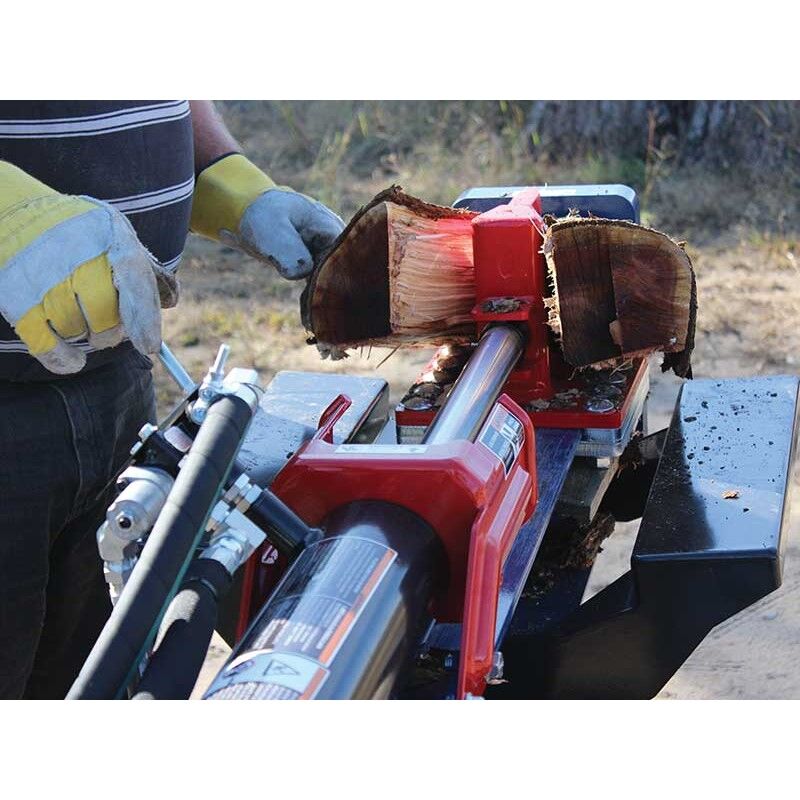

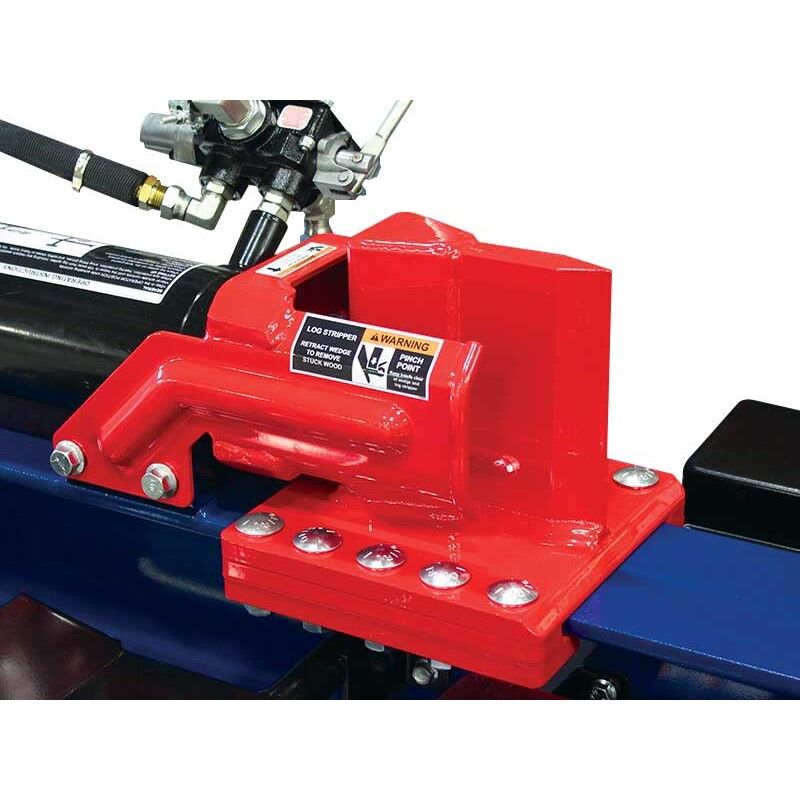

  • Heavy-duty wedge features five bolts per side
  • Heavy-duty log cradle, fenders, and engine mount
  • 4-stage hydraulic filtration system
  • Heavy-duty crank down wheel jack for easy moving
  • Halite commercial cylinder seals for consistent pressure
  • Long lasting powder coat finish

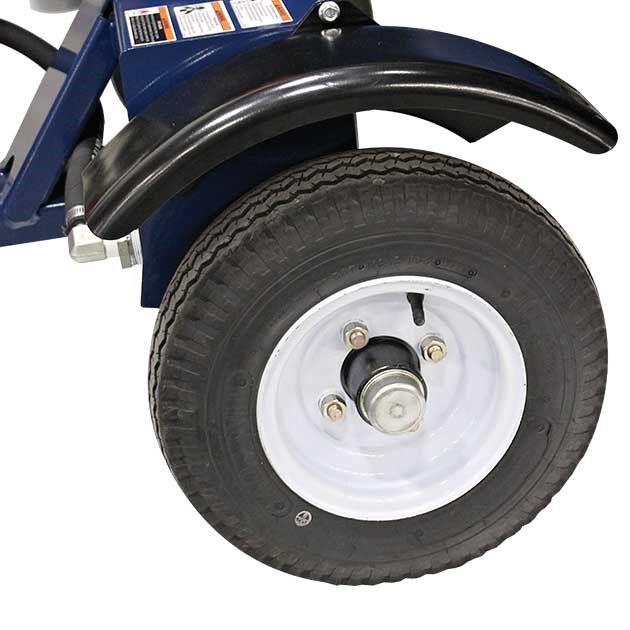

  • Heavy-duty 4 bolt trailer hubs for towing
  • Offset valve for better operator positions
  • Tow cables included
  • 2″ hitch coupler
  • Heavy-duty 2″ x 3″ box tube tongue

Specifications:

Cylinder 4″ X 24″ clevis type, 1.75″ rod
Valve 3 position with auto return
Pump 11 GPM HI-LO 2 Stage
Hydraulic Tank 9.0 Gallons System Total
Hydraulic Capacity 10.0 Gallons System Total
Engine Honda GX160
Displacement 163cc
Bed Height 32″
Beam 6″ Heavy-Duty Formed Steel
Tires 4.8″ x 8.0″ Highway Rated
Log Opening 25″
Cycle Time Approx. 13 Seconds Complete Cycle
Splitting Force Approx. 24 tons
Weight 675 lbs
