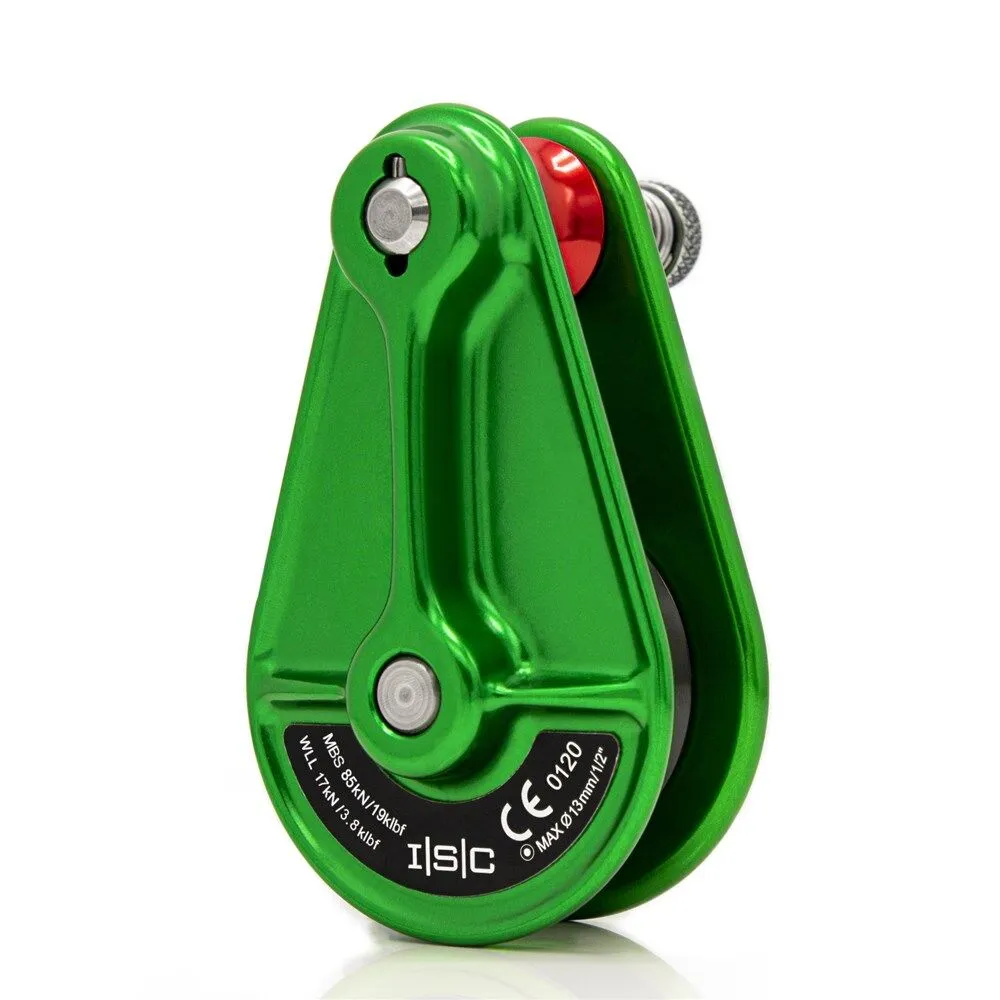

ISC Compact Rigging Pulley for 1/2″ Rope

$179.95

Be the first to leave a review.

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

Categories: SKU: 608-1

The Pulley plates are made from hot forged Aluminium and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load-bearing capacity.

Working Line (Grey Sheave):
13mm (1/2″) – 38kN (8500lbf)

Topping Strop (Red Sheave):
16mm (5/8″) – 74kN (16650lbf)

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.

Technical Information

  • (MBS) Minimum Breaking Strength (kN) – 85
  • (MBS) Minimum Breaking Strength (lbf) – 19000
  • Pulley wheel colour – Grey
  • Anchor wheel colour – Red
  • Wheel material – Aluminium
  • Body finish – Anodised
  • Colour – Green/grey
  • Weight (grams) – 490
  • Weight (ounces) – 16
  • Height (mm) – 125
  • Height (inches) – 5
  • Width (mm) – 76
  • Width (inches) – 3
  • Approved Standards – CE 0120 Machinery Directive
  • Manufacturer Part Number – RP048
