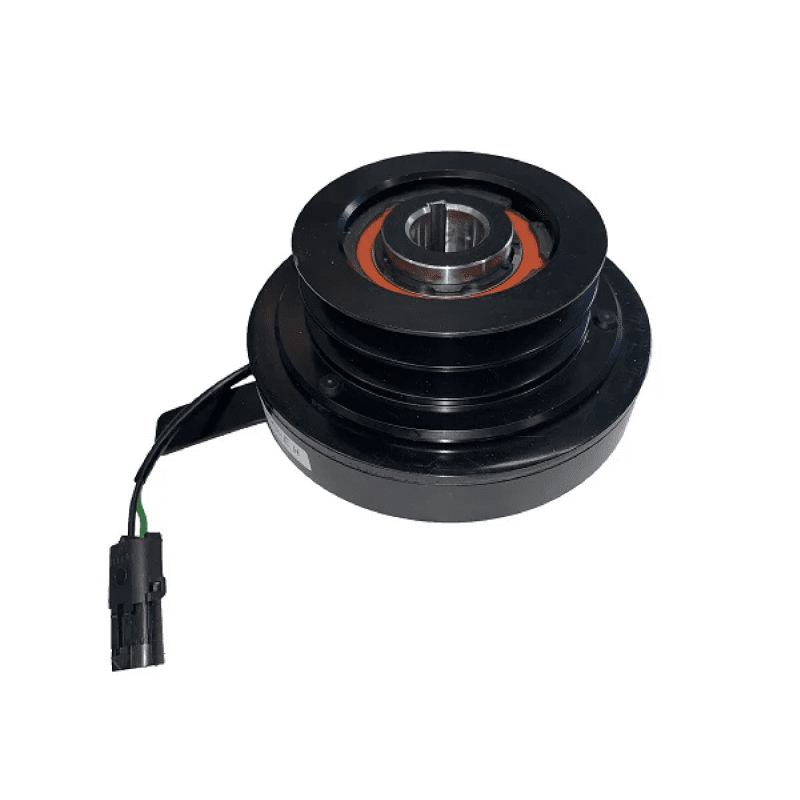

Ogura Electromagnetic Clutch, 1-1/8″

Ogura general purpose clutches are bearing mounted. The field is supported by a bearing on the shaft. Clutches are available in one piece and two piece designs.

Ogura general purpose electric clutches provide reliable performance for long life applications. These clutches are designed to mount directly on a gas or diesel engine. They are used in many outdoor power equipment applications, such as stump grinders, pump jacks, fans, and straw blowers or in salt & sand spreaders. Ogura general purpose electromagnetic clutches can handle almost all direct engine mount clutch requirements in the 5 horsepower to 40 horsepower load range. They are also ideally suited for outdoor applications in the agricultural, construction equipment, oil and gas field and power generation markets. Designed to transfer rotary motion directly from an engine, Ogura clutches feature standard crankshaft bore sizes and torque ratings to handle a variety of engines. A wide selection of forged machined pulleys or universal mounting output hubs provide a variety of connection options.

Featuring a solid forged rotor, high temp/long life bearings and e-coat corrosion protection, Ogura general purpose clutches can tackle the most demanding applications.

Ogura Design Advantages

• Solid Forged Rotor
  A one piece solid forged rotor means no chance of internal parts separation. Our rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
• High Temperature, Longer Life Grease
  All models include our special long life grease which has shown a significant improvement in life over other standard high temp greases.
• E-Coating
  Where possible, all parts in the clutch are e-coated to give maximum corrosion protection.
• High Temperate Epoxy Coil
  To help prevent failure from both vibration and outside contaminants, all coils are sealed in the coil shell with a high temperature epoxy coating.
• Forged Machine Pulley
  All models in this section use a heavy duty machined pulley. A stronger pulley resists damage due to abusive environments.
