Specifications

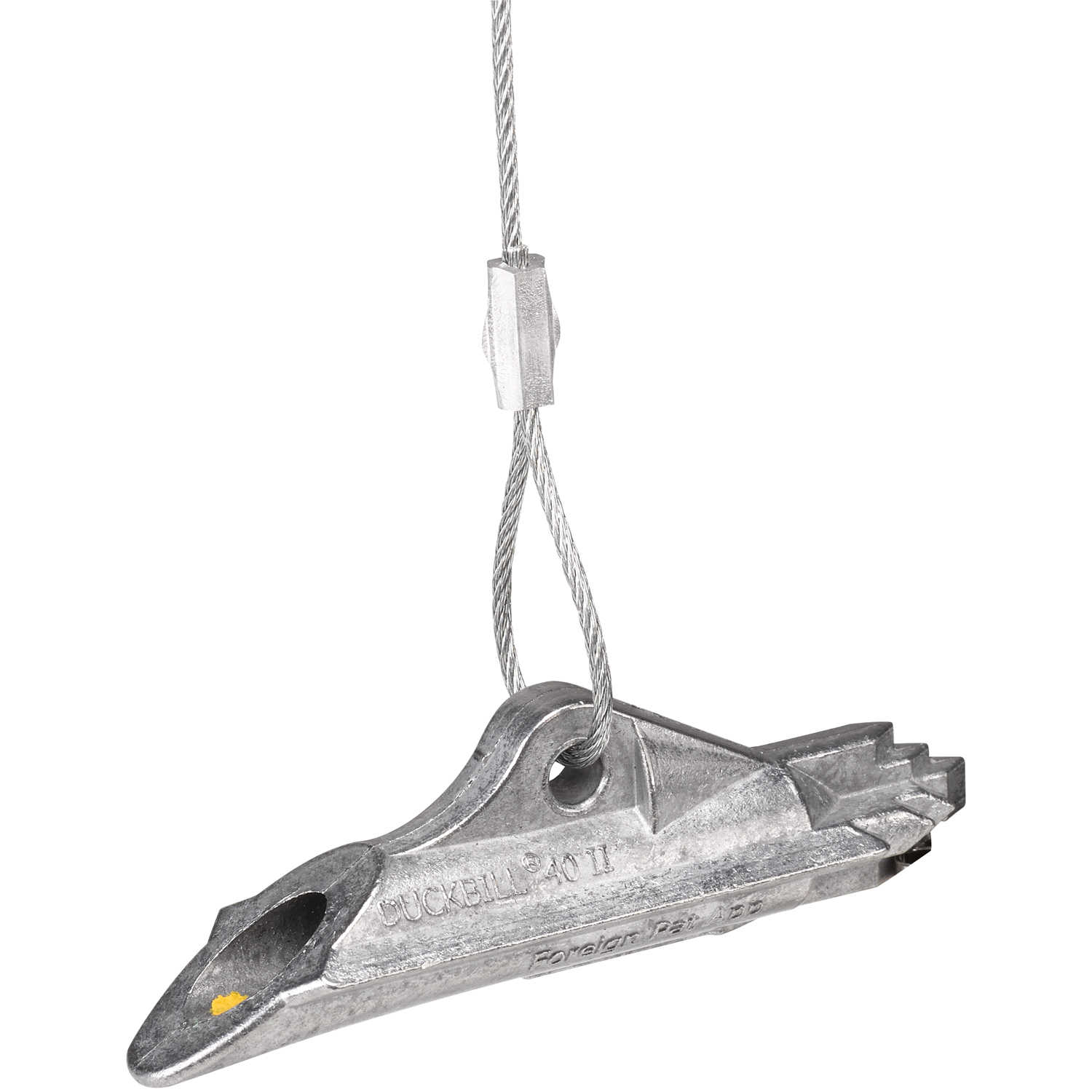

Model 40-DB1
Capacity: 300 lbs (1.33 kN) in normal soil
Wire Rope Length: 20 in (0.51 m)
Galvanized Wire Rope: 1/16 in (6.4 mm) 7 x 19 GAC
Wire Rope Breaking Strength: 480 lbs (2.14 kN)
Anchor Weight: 1.0 oz (28 gm)
Standard Case & Weight: 50 units at 3.7 lbs (1.7 kg)
Applications
Duckbill Anchors are used worldwide to secure items that can be stolen, moved or blown down. Duckbill Anchors are intended for light duty applications in normal soils.
For highly corrosive environments, Duckbill Anchors can be fabricated with stainless steel wire rope, plastic impregnated wire rope or other corrosion-resistant solutions.
Ideal for:
- Tree support
- Fences
- Structures
- Tents
- Towers
- Scaffolding
- Tree Revetments
- Turf Reinforcement
- Sheds
- Theft Deterrent
- Vineyards
- And More
The Duckbill Anchor Principle
Saving time and labor, patented Duckbill® Anchors work like toggle bolts in the soil. Duckbill Anchors are driven into the ground (with no holes, no digging and no concrete), providing a safe and environmentally sensitive installation. An upward pull on the anchor tendon rotates the Duckbill Anchor into a perpendicular “load lock” position in undisturbed soil. Duckbill Anchor systems offer the most effective, lightweight, economical solutions to any anchoring application, large or small.
