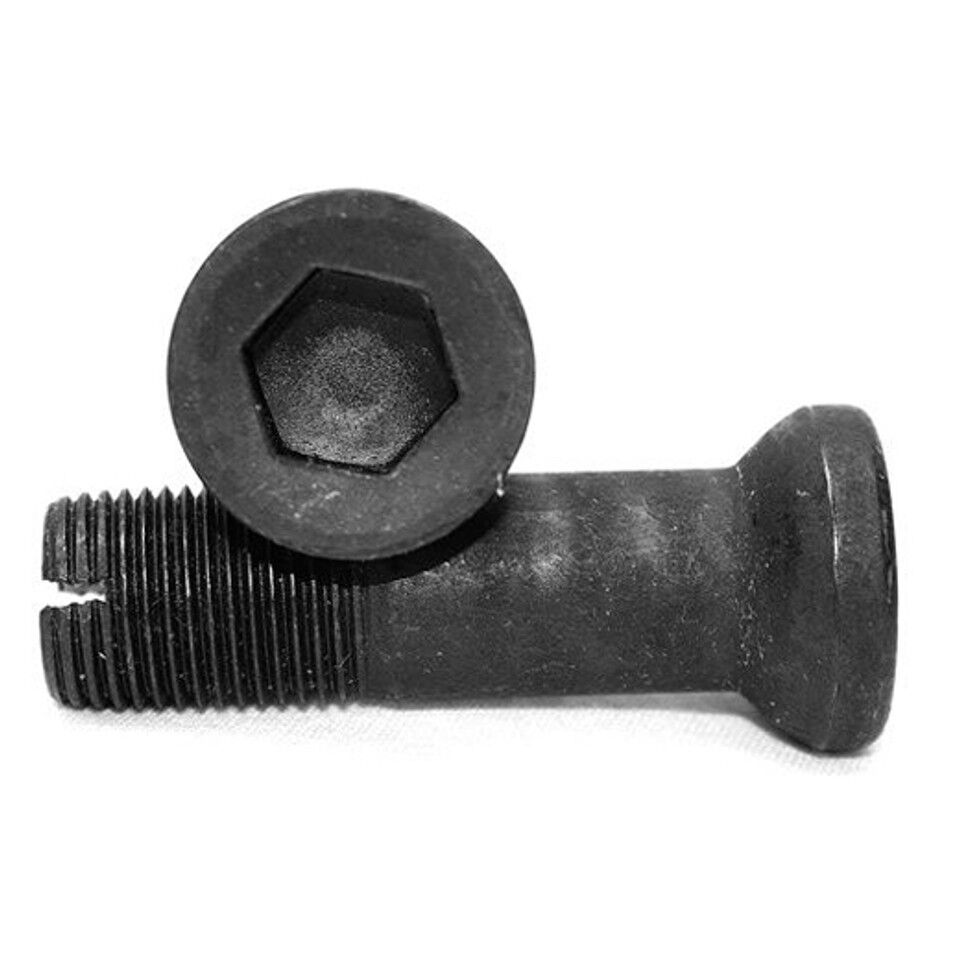

With the LoPro® design, by reducing the thickness of the pockets and a new design it allowed to increase the steel under the bolts head which in turn created a stronger pocket. A slot at the end of the bolt helps with quick extraction of a broken bolt. With the LoPro® design it has increased the surface area of the pocket which in turn better distributes the torque of the bolt into the wheel.
Recommendations: GREEN-SEIZE™ is a premium anti-seize compound composed of fine copper and graphite powders in a high-heat organic carrier. We recommend lubricating the threads of the pocket bolts to make removal easier.
How to measure bolt length:
- Green Bolts are measured from the top of the head to the bottom of the bolt. They are not measured by shank only.
Specifications:
- Series: LoPro®
- Allen Drive Size: 1/2″
- Torque: 180 ft. lbs. with GREEN-SEIZE™, or 240 ft. lbs. dry.
- Pocket Compatibility: Designed specifically to fit the angled shoulder of the LoPro® pocket
- Larger surface area on the angled shoulder for greater holding power
- Smooth shank that reduces wheel wear
- Hardness: Grade 8 Heat treated for superior wear resistance.
Sizing Chart:
1-3/4″ Bolt is used for 3/8″ wheels
Manufacturer Part Number: LP-134
2″ Bolt is used for 1/2″ wheels
Manufacturer Part Number: LP-200
2-1/4″ Bolt is used for for 3/4″ wheels
Manufacturer Part Number: LP-214
2-1/2″ Bolt is used for 1″ wheels
Manufacturer Part Number: LP-212
3″ Bolt is used for 1-1/2″ wheels
Manufacturer Part Number: LP-300
